12mm Rotary Potentiometer 27

Alpha Products Inc - 351 Irving Drive, Oxnard, CA 93030, USA - Tel: 805-981-8666 - Fax: 805-988-6555 - Contact Us

Corporate Website

Send Your Specs

Other Catalogs

Contact Us

Std. Tapers

Request for Quote

Part Number

Model number

Shaft code

Style

Dim “H”

Taper

Value in Ohms

3RP/1216N

D

Select Part Numbers from the table then click on the “Request a Quote” Button to send your requirements for Price and Delivery. If you need custom product please use the “Send your Specs” Button

Circuit

Electrical Characterisics

Mechanical Characteristics

Resistance Values

5 KOhm ~ 2 MOhm  +/- 20%

Total Rotational Angle

300 deg +/- 10 deg

Resistance Taper

A, B, C

Rotational Torque

20 ~ 150 gf/cm

Residual Resistance

0.1% max of total resistance

Rotational Stop Strength

4 kgf/cm

Rated Power

taper A, C = 0.02W
taper B = 0.04W

Push / Pull Strength

4 kgf/cm

Operating Voltage

taper A, C = 50V
taper B = 100V

Click Position

Center

Insulation Resistance

50MOhm min @250V DC

LIfe

15,000 cycles

Gang Error

3dB max

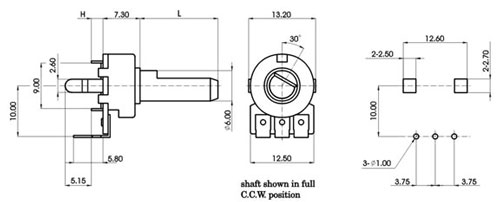

Type Of Shaft

CODE

L

K

I

J

A

H

B

C

DIM “L”

5.0

7.0

10.0

10.0

15.0

15.0

20.0

25.0

DIM “F”

5.0

7.0

7.0

8.0

7.0

12.0

12.0

12.0

CODE

V

W

Y

Z

DIM “L”

5.0

10.0

15.0

20.0

DIM “T”

5.0

10.0

15.0

15.0

CODE

N

O

R

DIM “L”

10.0

15.0

20.0

DIM “T”

7.0

10.0

12.0

Dimension “H”

CODE

1

2

DIM “H”

2.7

2.3
