Wanted
International
Stockist / Distributors
12mm Rotary Potentiometer 4

Alpha Products Inc - 351 Irving Drive, Oxnard, CA 93030, USA - Tel: 805-981-8666 - Fax: 805-988-6555 - Contact Us

Corporate Website

Send Your Specs

Other Catalogs

Contact Us

Std. Tapers

Request for Quote

Part Number

Model number

Shaft code

Style

Taper

Value in Ohms

3RP/1201N

A2

Select Part Numbers from the table then click on the “Request a Quote” Button to send your requirements for Price and Delivery. If you need custom product please use the “Send your Specs” Button

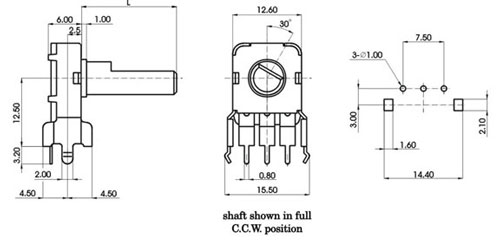

Circuit

Electrical Characterisics

Mechanical Characteristics

Resistance Values

500 Ohm ~ 1 MOhm +/- 20%

Total Rotational Angle

300 deg +/- 10 deg

Resistance Taper

B

Rotational Torque

31 ~ 204 gf/cm

Residual Resistance

0.1% max of total resistance

Rotational Stop Strength

5 kgf/cm

Rated Power

0.15W

Push / Pull Strength

7 kgf/cm

Operating Voltage

150V AC, 10V DC max

Click Position

Center

Insulation Resistance

100MOhm min @500V DC

Click Torque

51 ~ 204 gf/cm

LIfe

10,000 cycles

Type Of Shaft

CODE

F

A

G

E

B

C

D

Y

DIM “L”

7.5

12.5

12.5

15.5

17.5

22.5

27.5

13.5

DIM “F”

5.0

7.0

8.0

12.0

12.0

12.0

12.0

12.0

CODE

0

1

2

3

4

5

6

DIM “L”

7.5

10.5

12.5

17.5

22.5

27.5

32.5

DIM “T”

5.0

7.0

7.0

12.0

12.0

12.0

12.0

CODE

P

Q

R

S

T

U

DIM “L”

7.5

12.5

17.5

22.5

27.5

32.5

DIM “T”

5.0

7.0

7.0

12.0

12.0

12.0

Disclaimer: Alpha Products, Inc. makes no warranties, expressed or implied, including warranties of merchant ability or fitness /suitability for a particular purpose or application. Under no circumstances shall Alpha Products, Inc. be liable for incidental, consequential, or other damages from alleged negligence, breach of warranty, strict liability, tort, contract, or any other theory, arising out of the use, non use, or handling of these products.
Alpha Products Inc. reserves the right to discontinue, modify, amend and / or change any product, specification or service at any time without any obligation of providing any notice.

 Site Created by: Tarola International / USA  Hosted by Tarola.Net - Copyright 2006-2014.
 Copying or
Duplicating,of any part of this website in any form without written permission form Alpha Products Inc. is strictly forbidden
