12mm Rotary Potentiometer 16

Alpha Products Inc - 351 Irving Drive, Oxnard, CA 93030, USA - Tel: 805-981-8666 - Fax: 805-988-6555 - Contact Us

Corporate Website

Send Your Specs

Other Catalogs

Contact Us

Std. Tapers

Request for Quote

Part Number

Model number

Shaft code

Style

Taper

Value in Ohms

Detents code

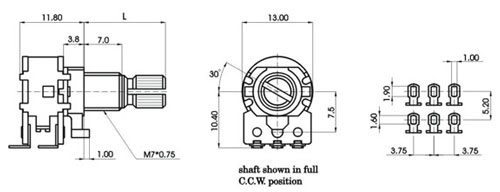

3RP/1210G

B1

Select Part Numbers from the table then click on the “Request a Quote” Button to send your requirements for Price and Delivery. If you need custom product please use the “Send your Specs” Button

Circuit

Electrical Characterisics

Mechanical Characteristics

Resistance Values

5 KOhm ~ 1 MOhm  +/- 20%

Total Rotational Angle

300 deg +/- 10 deg

Resistance Taper

B

Rotational Torque

20 ~ 204 gf/cm

Residual Resistance

0.1% max of total resistance

Rotational Stop Strength

5 kgf/cm

Rated Power

0.08W

Push / Pull Strength

7 kgf/cm

Operating Voltage

150V AC

Click Torque

51 ~ 305 gf/cm

Insulation Resistance

50MOhm min @500V DC

LIfe

15,000 cycles

Gang Error

3dB max

Type Of Shaft

CODE

A

B

C

D

DIM “L”

15.0

20.0

25.0

30.0

DIM “F”

7.0

12.0

12.0

14.0

CODE

Q

R

S

DIM “L”

15.0

20.0

25.0

CODE

2

3

4

5

DIM “L”

15.0

20.0

25.0

30.0

DIM “T”

6.0

8.0

12.0

12.0

DIM “M”

1.0

2.0

2.0

2.0

Number Of Clicks

Code

Clicks

Code

Clicks

0

none

5

16

C

center

6

21

1

3

7

31

2

5

8

40

3

7

9

41

4

11
