Part Number
Model number
Taper
Value in Ohms

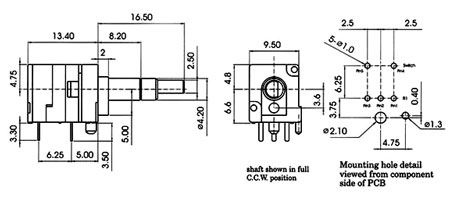

3RP/091DS-0A1
Select Part Numbers from the table then click on the “Request a Quote” Button to send your requirements for Price and Delivery. If you need custom product please use the “Send your Specs” Button
Electrical Characterisics
Mechanical Characteristics
Resistance Values
10 KOhm ~ 500 kOhm +/- 20%
Total Rotational Angle
300 deg +/- 10 deg
Resistance Taper
A, B, C
Rotational Torque
10 ~ 200 gf/cm
Residual Resistance
0.1% max of total resistance
Rotational Stop Strength
outer shaft = 4 kgf/cm inner shaft = 3 kgf/cm
Rated Power
taper A, C = 0.025W taper B = 0.05W
Push / Pull Strength
4 kgf/cm / 3 kgf/cm
Operating Voltage
taper A, C = 25V AC max taper B = 50V AC max
LIfe
10,000 cycles
Slide Noise
100mV max
Insulation Resistance
100MOhm min @250V DC
Gang Error
3dB max
