Wanted
International
Stockist / Distributors
Standard Slide Potentiometer 6

Alpha Products Inc - 351 Irving Drive, Oxnard, CA 93030, USA - Tel: 805-981-8666 - Fax: 805-988-6555 - Contact Us

Corporate Website

Send Your Specs

Other Catalogs

Contact Us

Std. Tapers

Request for Quote

Part Number

Model number

Lever code

Style

Taper

Value in Ohms

Detents

3SP/S3006N

A1

Select Part Numbers from the table then click on the “Request a Quote” Button to send your requirements for Price and Delivery. If you need custom product please use the “Send your Specs” Button

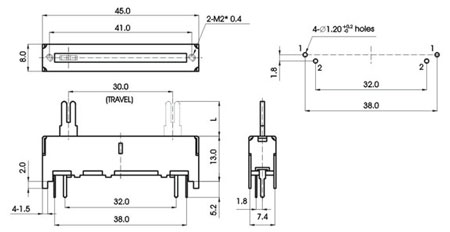

Circuit

Electrical Characterisics

Mechanical Characteristics

Resistance Values

1 KOhm ~ 1MOhm +/- 20%

Operating Force

20 ~ 200 gf

Resistance Taper

A, B, C, D, K, W, RD

Stop Strength

5 kgf

Residual Resistance

50 Ohm max

Lever Wobble

2(2xL)/20mm max

Rated Power

taper except B = 0.05W
taper B = 0.1W

Bending Moment

250 gf/cm

Operating Voltage

taper except B = 150V AC

taper B = 200V AC

Lever Deviation

0.5 max (one side)

Insulation Resistance

100MOhm min @250V DC

Clicks

Center, 7, 11

Gang Error

3 dB max

Life

15,000 cycles

Type Of Lever

CODE

1

2

3

4

5

DIM “L”

10.0

12.0

15.0

20.0

25.0

DIM “F”

7.0

10.0

10.0

10.0

10.0

DIM “M”

7.0

7.0

7.0

7.0

7.0

CODE

B

C

DIM “L”

15.0

20.0

DIM “F”

10.0

10.0

Clicks

CODE

# OF CLICKS

C

CENTER

7

7

11

11

Disclaimer: Alpha Products, Inc. makes no warranties, expressed or implied, including warranties of merchant ability or fitness /suitability for a particular purpose or application. Under no circumstances shall Alpha Products, Inc. be liable for incidental, consequential, or other damages from alleged negligence, breach of warranty, strict liability, tort, contract, or any other theory, arising out of the use, non use, or handling of these products.
Alpha Products Inc. reserves the right to discontinue, modify, amend and / or change any product, specification or service at any time without any obligation of providing any notice.

 Site Created by: Tarola International / USA  Hosted by Tarola.Net - Copyright 2006-2014.
 Copying or
Duplicating,of any part of this website in any form without written permission form Alpha Products Inc. is strictly forbidden
