9mm Pot 4 + LED


	Alpha Products Inc - 351 Irving Drive, Oxnard, CA 93030, USA - Tel: 805-981-8666 - Fax: 805-988-6555 - Contact Us

Part Number

Model number

Shaft code

Style

Taper

Value in Ohms

3RP/094LG


	Select Part Numbers from the table then click on the “Request a Quote” Button to send your requirements for Price and Delivery. If you need custom product please use the “Send your Specs” Button


Circuit

Electrical Characterisics		Mechanical Characteristics
Resistance Values	0 KOhm ~ 500 kOhm +/- 20%	Total Rotational Angle	300 deg +/- 10 deg
Resistance Taper	A, B, C	Rotational Torque	10 ~ 200 gf/cm
Residual Resistance	0.1% max of total resistance	Rotational Stop Strength	4 kgf/cm
Rated Power	taper A, C = 0.025W taper B = 0.05W	Click position	center
Rated Power	taper A, C = 0.025W taper B = 0.05W	Click torque	20 ~ 200 gf/cm
Operating Voltage	taper A, C = 25V AC max taper B = 50V AC	Push / Pull Strength	6 kgf/cm / 4 kgf/cm
Operating Voltage	taper A, C = 25V AC max taper B = 50V AC	LIfe	10,000 cycles
Slide Noise	100mV max
Insulation Resistance	100MOhm min @250V DC
Gang error	3dB max

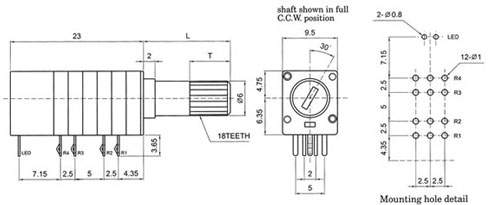

Shaft length
CODE	2	3	4
DIM “L”	15.0	20.0	25.0
DIM “T”	7.0	12.0	12.0
