8mm Pot w/Switch 5

Alpha Products Inc - 351 Irving Drive, Oxnard, CA 93030, USA - Tel: 805-981-8666 - Fax: 805-988-6555 - Contact Us

Corporate Website

Send Your Specs

Contact Us

Std. Tapers

Request for Quote

Part Number

Model number


Value in Ohms


Select Part Numbers from the table then click on the Request a Quote Button to send your requirements for Price and Delivery. If you need custom product please use the Send your Specs Button

Electrical Characterisics

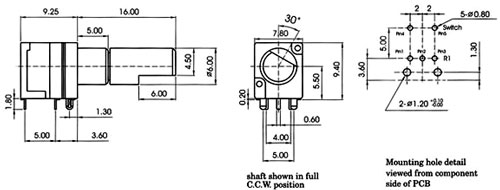

Mechanical Characteristics

Resistance Values

10 KOhm ~ 500 kOhm +/- 20%

Total Rotational Angle

300 deg +/- 5 deg

Resistance Taper

A, B, C

Rotational Torque

120 ~ 200 gf/cm

Residual Resistance

20 Ohm max

Rotational Stop Strength

5 kgf/cm

Rated Power

taper A, C = 0.025W
taper B = 0.05W

Push / Pull Strength

5 kgf/cm / 3 kgf/cm

Operating Voltage

taper A, C = 25V AC
taper B = 50V AC

Slide Noise

100mV max


10,000 cycles

Insulation Resistance

100MOhm min @250V DC

Disclaimer: Alpha Products, Inc. makes no warranties, expressed or implied, including warranties of merchant ability or fitness /suitability for a particular purpose or application. Under no circumstances shall Alpha Products, Inc. be liable for incidental, consequential, or other damages from alleged negligence, breach of warranty, strict liability, tort, contract, or any other theory, arising out of the use, non use, or handling of these products.
Alpha Products Inc. reserves the right to discontinue, modify, amend and / or change any product, specification or service at any time without any obligation of providing any notice.
