Part Number
Model number
Bushing/Shaft combination
Style
Value in Ohms
3RP/W50H
B
Select Part Numbers from the table then click on the “Request a Quote” Button to send your requirements for Price and Delivery. If you need custom product please use the “Send your Specs” Button
Electrical Characterisics
Mechanical Characteristics
Resistance Values
4 Ohm or 8 Ohm +/- 20%
Total Rotational Angle
300 deg +/- 5 deg
Resistance Taper
B (linear)
Rotational Torque
50 ~ 300 gf/cm
Rated Power
30W DC (2dB), 25W DC (6dB), 15W DC (12dB)
Antirotation Strength
1 kgf
Insulation Resistance
100MOhm min @500V DC
LIfe
15,000 cycles min
Withstand Voltage
500V AC for 1 minute

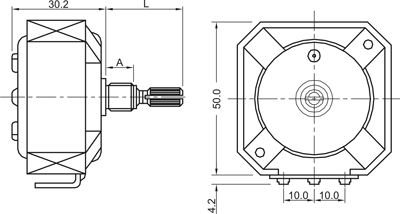

Bushing / Shaft Combination
CODE
1K
2K
3K
4K
5K
6K
DIM “L”
16.0
20.0
30.0
16.0
20.0
30.0
DIM “A”
10.0
20.0
# OF TEETH
18
Bushing thread
M9 x 0.75
