13mm Pot + Sw

Alpha Products Inc - 351 Irving Drive, Oxnard, CA 93030, USA - Tel: 805-981-8666 - Fax: 805-988-6555 - Contact Us

Corporate Website

Send Your Specs

Contact Us

Std. Tapers

Request for Quote

Part Number

Model number

Taper

Value in Ohms

3RP/13P2N-AD1

B

Select Part Numbers from the table then click on the “Request a Quote” Button to send your requirements for Price and Delivery. If you need custom product please use the “Send your Specs” Button



Electrical Characterisics

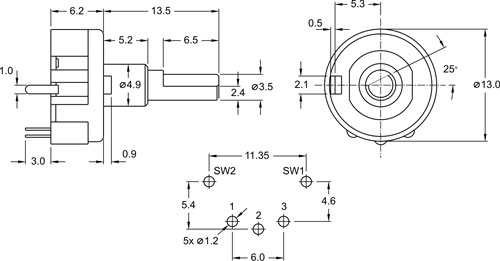

Mechanical Characteristics

Resistance Values

34 KOhm ~ 65 KOhm  +/- 20%

Total Rotational Angle

230 deg +/-10 deg

Resistance Taper

B

Rotational Torque

10 ~ 100 gf/cm

Residual Resistance

50 Ohm max

Rotational Stop Strength

2 kgf/cm

Rated Power

0.04W

Push Strength

10 kgf/cm

Operating Voltage

30V DC max

Switch Travel

0.4mm +/-0.06mm

Insulation Resistance

100MOhm min @500V DC

Operating Temperature

-30 deg C ~ +60 deg C

Withstand Voltage

500V AC for 1 minute

LIfe

50,000 cycles

Switch Resistance

50 Ohm max





Switch Contact Rating

250mA @12V DC
