11mm Encoder 4

Alpha Products Inc - 351 Irving Drive, Oxnard, CA 93030, USA - Tel: 805-981-8666 - Fax: 805-988-6555 - Contact Us

Corporate Website

Send Your Specs

Contact Us

Std. Tapers

Request for Quote

Part Number

Model number

Bushing

Shaft

Style

Dim “A”

Clicks

3EN/11N

E

D

Select Part Numbers from the table then click on the “Request a Quote” Button to send your requirements for Price and Delivery. If you need custom product please use the “Send your Specs” Button

Electrical Characterisics

Mechanical Characteristics

Rating

10mA @ 5V DC

Total Rotational Angle

360 deg

Withstanding Voltage

300V AC

Push / pull Strength

8 kgf

Insulation Resistance

100MOhm min @300V DC

Click Position

20, 30

Click Torque

51 ~ 194 gf/cm

Life

15,000 cycles

Type Of Shaft

CODE

2

3

4

5

DIM “L”

15.0

20.0

25.0

30.0

DIM “T”

6.0

10.0

10.0

12.0

DIM “M”

1.0

1.0

2.0

4.0

CODE

Q

R

S

T

DIM “L”

15.0

20.0

25.0

30.0

CODE

A

B

C

D

DIM “L”

15.0

20.0

25.0

30.0

DIM “F”

7.0

12.0

12.0

12.0

Length of bushing

CODE

4

5

DIM “N”

5.0

7.0

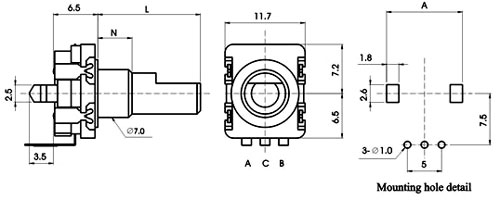

Dimension “A”

CODE

1

2

DIM “A”

11.0

13.2
