Part Number
Model number
Taper
Value in Ohms
3RP/1010G-1D1
Select Part Numbers from the table then click on the “Request a Quote” Button to send your requirements for Price and Delivery. If you need custom product please use the “Send your Specs” Button
Circuit
Electrical Characterisics

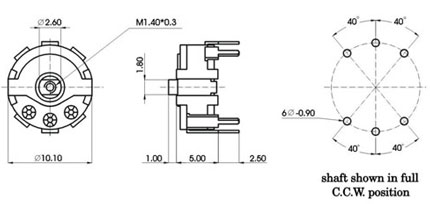

Mechanical Characteristics
Resistance Values
500 Ohm ~ 100 kOhm +/- 30%
Total Rotational Angle
230 deg +/- 10 deg
Resistance Taper
A, B, C, D
Rotational Torque
10 ~ 100 gf/cm
Residual Resistance
0.1% max of total resistance
Rotational Stop Strength
1 kgf/cm
Rated Power
0.03W
Push / Pull Strength
1 kgf/cm
Operating Voltage
50V AC, 20V DC max
LIfe
8,000 cycles
