9mm Rotary Potentiometer 5

Alpha Products Inc - 351 Irving Drive, Oxnard, CA 93030, USA - Tel: 805-981-8666 - Fax: 805-988-6555 - Contact Us

Corporate Website

Send Your Specs

Other Catalogs

Contact Us

Std. Tapers

Request for Quote

Part Number

Model number

Shaft code

Style

Taper

Value in Ohms

3RP/0905N

D1

Select Part Numbers from the table then click on the “Request a Quote” Button to send your requirements for Price and Delivery. If you need custom product please use the “Send your Specs” Button

This item discontinued. Consult factory. Sorry for inconvenience.

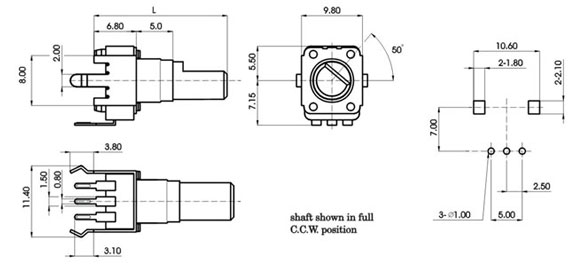

Circuit

Electrical Characterisics

Mechanical Characteristics

Resistance Values

5 KOhm ~ 500 kOhm  +/- 20%

Total Rotational Angle

280 deg +/- 5 deg

Resistance Taper

A, B, C

Rotational Torque

10 ~ 80 gf/cm

Residual Resistance

0.1% max of total resistance

Rotational Stop Strength

3 kgf/cm

Rated Power

0.05W

Push / Pull Strength

5 kgf/cm

Operating Voltage

50V AC, 20V DC max

Shaft Lever Wobble

0.8 x L/20mmp-p max

Slide Noise

100mV max

LIfe

10,000 cycles

Insulation Resistance

100MOhm min @250V DC

Withstand Voltage

250V AC for 1 minute

Type Of Shaft

CODE

A

B

C

D

DIM “L”

15.0

20.0

25.0

30.0

DIM “F”

6.0

7.0

12.0

12.0

CODE

H

I

J

DIM “L”

9.5

15.0

20.0

DIM “T”

-

6.0

7.0

CODE

Y

Z

DIM “L”

15.0

20.0

DIM “T”

7.0

7.0

CODE

K

L

M

N

O

DIM “L”

15.0

20.0

25.0

30.0

35.0

DIM “S”

7.0

7.0

7.0

7.0

7.0

CODE

Q

R

S

T

U

DIM “L”

15.0

20.0

25.0

30.0

35.0

DIM “K”

6.0

7.0

7.0

7.0

7.0
