9mm Rotary Potentiometer 24

Alpha Products Inc - 351 Irving Drive, Oxnard, CA 93030, USA - Tel: 805-981-8666 - Fax: 805-988-6555 - Contact Us

Corporate Website

Send Your Specs

Other Catalogs

Contact Us

Std. Tapers

Request for Quote

Part Number

Model number

Shaft code

Style

Taper

Value in Ohms

3RP/920AG

A1

Select Part Numbers from the table then click on the “Request a Quote” Button to send your requirements for Price and Delivery. If you need custom product please use the “Send your Specs” Button

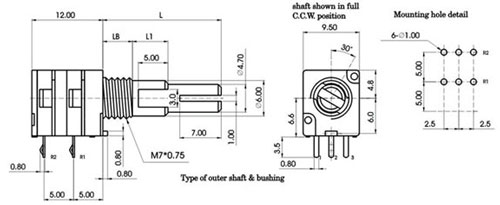

LB = 5.0mm
L1 = 6.0mm

Circuit

Electrical Characterisics

Mechanical Characteristics

Resistance Values

10 KOhm ~ 500 kOhm +/- 20%

Total Rotational Angle

300 deg +/- 10 deg

Resistance Taper

A, B, C

Rotational Torque

10 ~ 200 gf/cm

Residual Resistance

0.1% max of total resistance

Rotational Stop Strength

outer shaft = 4 kgf/cm
inner shaft = 3 kgf/cm

Rated Power

taper A, C = 0.025W
taper B = 0.05W

Push / Pull Strength

4 kgf/cm / 3 kgf/cm

Operating Voltage

taper A, C = 25V AC max
taper B = 50V AC max

LIfe

10,000 cycles

Slide Noise

100mV max

Insulation Resistance

100MOhm min @250V DC

Gang Error

3dB max

Length of shaft

CODE

R

S

DIM “L”

20.0

25.0
