24mm Wire Wound Potentiometer

Alpha Products Inc - 351 Irving Drive, Oxnard, CA 93030, USA - Tel: 805-981-8666 - Fax: 805-988-6555 - Contact Us

Corporate Website

Send Your Specs

Other Catalogs

Contact Us

Std. Tapers

Part Number

Model number

Bushing/Shaft combination

Style

Value in Ohms

3RP/W24A

B

Select Part Numbers from the table then click on the Request a Quote Button to send your requirements for Price and Delivery. If you need custom product please use the Send your Specs Button

Electrical Characterisics

Mechanical Characteristics

Resistance Values

5 Ohm ~ 2 kOhm +/- 20%

Total Rotational Angle

300 deg +/- 10 deg

Resistance Taper

B (linear)

Starting Torque

50 ~ 300 gf/cm

Rated Power

5W DC

Antirotation Strength

1 kgf

Withstand Voltage

500V AC for 1 minute

LIfe

15,000 cycles min

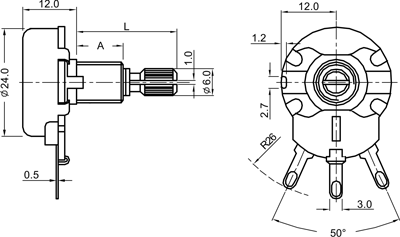

Bushing / Shaft Combination

CODE

1K

2K

3K

4K

DIM L

15.0

20.0

15.0

20.0

DIM A

7.5

10.5

# OF TEETH

18

24

Bushing thread

M9 x 0.75

3/8-32 NEF

CODE

1S

2S

3S

4S

DIM L

15.0

20.0

15.0

20.0

DIM A

7.5

10.5

Bushing thread

M9 x 0.75

3/8-32 NEF

CODE

1R

2R

3R

4R

DIM L

15.0

20.0

15.0

20.0

DIM A

7.5

10.5

Bushing thread

M9 x 0.75

3/8-32 NEF

CODE

1F

2F

3F

4F

DIM L

15.0

20.0

15.0

20.0

DIM A

7.5

10.5

Bushing thread

M9 x 0.75

3/8-32 NEF
