22mm Wire Wound Potentiometer 1

Alpha Products Inc - 351 Irving Drive, Oxnard, CA 93030, USA - Tel: 805-981-8666 - Fax: 805-988-6555 - Contact Us

Corporate Website

Send Your Specs

Contact Us

Std. Tapers

Request for Quote

Part Number

Model number

Bushing/Shaft combination

Style

Value in Ohms

3RP/W22A

B

Select Part Numbers from the table then click on the “Request a Quote” Button to send your requirements for Price and Delivery. If you need custom product please use the “Send your Specs” Button

Electrical Characterisics

Mechanical Characteristics

Resistance Values

100 Ohm ~ 22 kOhm  +/- 10%

Total Rotational Angle

300 deg +/- 10 deg

Resistance Taper

B (linear)

Starting Torque

36 ~ 100 m/m

Rated Power

1W DC

Stop Strength

500 m/m min

Withstand Voltage

1000V AC for 1 minute

LIfe

5,000 cycles min

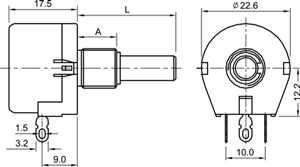

Bushing / Shaft Combination

CODE

1S

2S

DIM “L”

24.0

49.0

DIM “A”

10.0

Bushing thread

M10 x 0.75
