12mm Encoder 2

Alpha Products Inc - 351 Irving Drive, Oxnard, CA 93030, USA - Tel: 805-981-8666 - Fax: 805-988-6555 - Contact Us

Corporate Website

Send Your Specs

Contact Us

Std. Tapers

Request for Quote

Part Number

Model number

Shaft

Style

3EN/1215E

D1

Select Part Numbers from the table then click on the “Request a Quote” Button to send your requirements for Price and Delivery. If you need custom product please use the “Send your Specs” Button

Electrical Characterisics

Mechanical Characteristics

Rating

0.5mA @ 5V DC

Total Rotational Angle

360 deg

Withstanding Voltage

50V AC

Click Position

24

Insulation Resistance

100MOhm min @50V DC

Click Torque

30 ~ 200 gf/cm

Resolution

24 pulses

Life

15,000 cycles

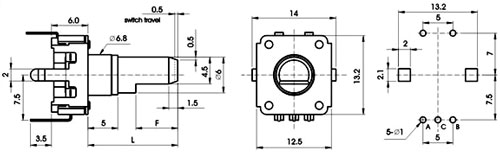

Type Of Shaft

CODE

A

B

C

DIM “L”

15.0

20.0

25.0

DIM “F”

7.0

7.0

12.0
