12mm Rotary Encoder 1

Alpha Products Inc - 351 Irving Drive, Oxnard, CA 93030, USA - Tel: 805-981-8666 - Fax: 805-988-6555 - Contact Us

Corporate Website

Send Your Specs

Other Catalogs

Contact Us

Std. Tapers

Part Number

Model number

Shaft

Style

3EN/12N5E

D1

Select Part Numbers from the table then click on the Request a Quote Button to send your requirements for Price and Delivery. If you need custom product please use the Send your Specs Button

Electrical Characterisics

Mechanical Characteristics

Rating

0.5mA @ 5V DC

Total Rotational Angle

360 deg

Withstanding Voltage

50V AC

Click Position

24

Insulation Resistance

100MOhm min @50V DC

Click Torque

30 ~ 200 gf/cm

Resolution

24 pulses

Life

15,000 cycles

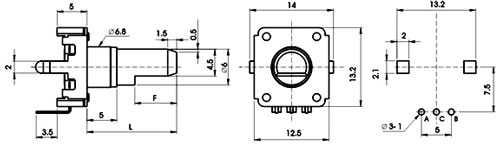

Shaft length

CODE

A

B

C

DIM L

15.0

20.0

25.0

DIM F

7.0

7.0

12.0
