Thin Slide Potentiometer 13

Alpha Products Inc - 351 Irving Drive, Oxnard, CA 93030, USA - Tel: 805-981-8666 - Fax: 805-988-6555 - Contact Us

Corporate Website

Send Your Specs

Contact Us

Std. Tapers

Request for Quote

Part Number

Model number

Lever

Terminal

Taper

Value in Ohms

3SP/T 5G

D

Select Part Numbers from the table then click on the “Request a Quote” Button to send your requirements for Price and Delivery. If you need custom product please use the “Send your Specs” Button

Circuit

Electrical Characterisics

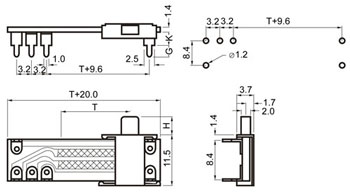

Mechanical Characteristics

Resistance Values

500 Ohm ~ 2MOhm  +/- 20%

Operating Force

10 ~ 100 gf

Resistance Taper

A, B, C, D, W

Stop Strength

3 kgf

Residual Resistance

10 Ohm

Push / Pull Strength

3 kgf

Rated Power

0.2W max

Lever Wobble

1.6 mm max

Operating Voltage

200V AC max

Life

10,000 cycles

Insulation Resistance

10MOhm min @250V DC

Withstanding Voltage

250V AC for 1 minute

Type Of Lever

CODE

1

DIM “H”

4.0

CODE

2

3

DIM “H”

9.5

7.0

DIM “F”

5.0

0

CODE

4

DIM “H”

6.0

Terminal option

CODE

4

5

6

DIM “K”

2.5

2.2

4.6

DIM “G”

2.5

3.0

3.0

Disclaimer: Alpha Products, Inc. makes no warranties, expressed or implied, including warranties of merchant ability or fitness /suitability for a particular purpose or application. Under no circumstances shall Alpha Products, Inc. be liable for incidental, consequential, or other damages from alleged negligence, breach of warranty, strict liability, tort, contract, or any other theory, arising out of the use, non use, or handling of these products.
Alpha Products Inc. reserves the right to discontinue, modify, amend and / or change any product, specification or service at any time without any obligation of providing any notice.
