Thin Slide Potentiometer 1

Alpha Products Inc - 351 Irving Drive, Oxnard, CA 93030, USA - Tel: 805-981-8666 - Fax: 805-988-6555 - Contact Us

Corporate Website

Send Your Specs

Contact Us

Std. Tapers

Request for Quote

Part Number

Model number

Lever

Terminal

Taper

Value in Ohms

3SP/T 2N

A

Select Part Numbers from the table then click on the “Request a Quote” Button to send your requirements for Price and Delivery. If you need custom product please use the “Send your Specs” Button

Circuit

Electrical Characterisics

Mechanical Characteristics

Resistance Values

500 Ohm ~ 2MOhm  +/- 20%

Operating Force

10 ~ 100 gf

Resistance Taper

A, B, C, D, W

Stop Strength

3 kgf

Residual Resistance

10 Ohm

Push / Pull Strength

3 kgf

Rated Power

0.2W max

Lever Wobble

1.6 mm max

Operating Voltage

200V AC max

Life

10,000 cycles

Insulation Resistance

10MOhm min @250V DC

Withstanding Voltage

250V AC for 1 minute

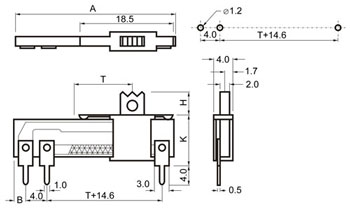

Travel option

CODE

DIM “T”

DIM “A’

DIM “B”

10

10.0

33.6

2.5

20

20.0

48.0

3.2

30

30.0

56.0

3.5

Type Of Lever

CODE

1

DIM “H”

5.0

CODE

1

DIM “H”

5.0

Terminal option

CODE

1

2

DIM “K”

10.8

11.8
