Thin Slide Potentiometer 18

Alpha Products Inc - 351 Irving Drive, Oxnard, CA 93030, USA - Tel: 805-981-8666 - Fax: 805-988-6555 - Contact Us

Corporate Website

Send Your Specs

Other Catalogs

Contact Us

Std. Tapers

Part Number

Model number

Lever

Terminal

Taper

Value in Ohms

3SP/T 7N

D

Select Part Numbers from the table then click on the Request a Quote Button to send your requirements for Price and Delivery. If you need custom product please use the Send your Specs Button

Circuit

Electrical Characterisics

Mechanical Characteristics

Resistance Values

500 Ohm ~ 2MOhm  +/- 20%

Operating Force

10 ~ 100 gf

Resistance Taper

A, B, C, D, W

Stop Strength

3 kgf

Residual Resistance

10 Ohm

Push / Pull Strength

3 kgf

Rated Power

0.2W max

Lever Wobble

1.6 mm max

Operating Voltage

200V AC max

Life

10,000 cycles

Insulation Resistance

10MOhm min @250V DC

Withstanding Voltage

250V AC for 1 minute

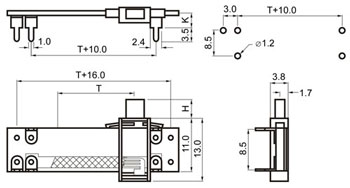

Type Of Lever

CODE

1

2

DIM H

4.0

6.0

CODE

7

DIM H

7.4

CODE

3

DIM H

10.0

CODE

8

DIM H

9.5

CODE

5

6

DIM H

12.0

14.5

CODE

A

B

C

D

E

F

DIM H

8.5

10.0

12.0

15.0

17.0

20.0

Terminal option

CODE

2

3

4

DIM K

3.5

6.3

9.3
