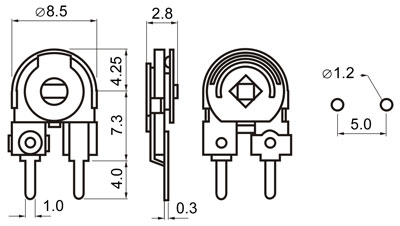

8mm Semi-Fixed Pot 4

Alpha Products Inc - 351 Irving Drive, Oxnard, CA 93030, USA - Tel: 805-981-8666 - Fax: 805-988-6555 - Contact Us

Corporate Website

Send Your Specs

Other Catalogs

Contact Us

Std. Tapers

Part Number

Model number

Taper

Value in Ohms

Knob

3FP/R082-3

Select Part Numbers from the table then click on the Request a Quote Button to send your requirements for Price and Delivery. If you need custom product please use the Send your Specs Button

Electrical Characterisics

Mechanical Characteristics

Total Resistance

200 Ohm ~ 1MOhm +/- 30%

Total Rotational Angle

260 deg +/- 10 deg

Resistance Taper

B

Rotation Torque

50 ~ 350 gf/cm

Power Rating

0.1W

Rotation Stop Strength

500 gf/cm

Operating Voltage

100V

Material

Carbon

Residual Resistance

3% max

Life

100 cycles

Knob option

A

B

C

D

E
