24mm Rotary Pot 4 + Switch

Alpha Products Inc - 351 Irving Drive, Oxnard, CA 93030, USA - Tel: 805-981-8666 - Fax: 805-988-6555 - Contact Us

Corporate Website

Send Your Specs

Other Catalogs

Contact Us

Std. Tapers

Part Number

Model number

Shaft

Style

Taper

Value in Ohms

3RP/2412S

D1

Select Part Numbers from the table then click on the Request a Quote Button to send your requirements for Price and Delivery. If you need custom product please use the Send your Specs Button

Electrical Characterisics

Mechanical Characteristics

Resistance Values

10 KOhm ~ 1 MOhm +/- 20%

Total Rotational Angle

300 deg +/- 5 deg

Resistance Taper

A, B

Rotational Torque

20 ~ 200 gf/cm

Residual Resistance

0.1% max of total resistance

Rotational Stop Strength

7 kgf/cm

Rated Power

taper A = 0.25W
taper B = 0.5W

Switch Rotational Angle

30 deg +/- 10 deg

Operating Voltage

taper A = 250V
taper B = 500V

LIfe

10,000 cycles

Insulation Resistance

100MOhm min @500V DC

Withstanding Voltage

500V AC for 1 minute

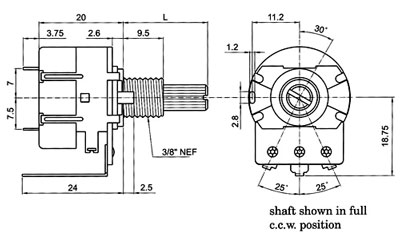

Type Of Shaft

CODE

M

N

O

P

DIM L

15.0

20.0

25.0

30.0

DIM T

5.0

12.0

12.0

12.0

DIM H

5.0

1.0

1.0

1.0
