16mm Rotary Potentiometer 3

Alpha Products Inc - 351 Irving Drive, Oxnard, CA 93030, USA - Tel: 805-981-8666 - Fax: 805-988-6555 - Contact Us

Corporate Website

Send Your Specs

Other Catalogs

Contact Us

Std. Tapers

Request for Quote

Part Number

Model number

Shaft code

Style

Taper

Value in Ohms

Detents

3RP/1610N

C3

Select Part Numbers from the table then click on the “Request a Quote” Button to send your requirements for Price and Delivery. If you need custom product please use the “Send your Specs” Button

Circuit

Electrical Characterisics

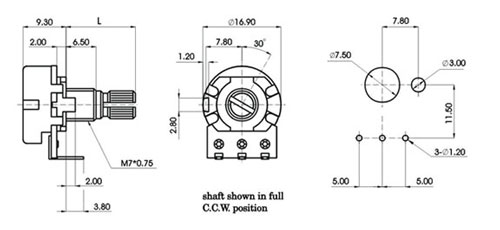

Mechanical Characteristics

Resistance Values

5 KOhm ~ 2 MOhm  +/- 20%

Total Rotational Angle

300 deg +/- 5 deg

Resistance Taper

A, B, C

Rotational Torque

20 ~ 200 gf/cm

Residual Resistance

0.1% max of total resistance

Rotational Stop Strength

7 kgf/cm

Rated Power

taper A, C = 0.06W
taper B = 0.125W

Push / Pull Strength

7 kgf/cm

Operating Voltage

taper A, C = 150V
taper B = 200V

Click Position

Center, 11, 21, 31, 41

Insulation Resistance

100MOhm min @500V DC

LIfe

15,000 cycles

Gang Error

3dB max

Type Of Shaft

CODE

0

1

2

7

8

3

4

5

DIM “L”

10.0

12.0

15.0

17.0

18.0

20.0

25.0

30.0

DIM “T”

2.3

3.5

6.0

7.0

8.0

9.9

12.1

12.0

DIM “M”

0.3

0.5

1.0

1.5

1.5

1.5

2.0

2.0

CODE

P

Q

R

S

T

U

DIM “L”

10.0

15.0

20.0

25.0

30.0

40.0

CODE

A

B

C

D

G

DIM “L”

15.0

20.0

25.0

30.0

12.0

DIM “F”

7.0

12.0

12.0

12.0

4.0

Detents

CODE

C

4

6

7

9

CLICKS

Center

11

21

31

41
