14mm Pot 8

Alpha Products Inc - 351 Irving Drive, Oxnard, CA 93030, USA - Tel: 805-981-8666 - Fax: 805-988-6555 - Contact Us

Corporate Website

Send Your Specs

Contact Us

Std. Tapers

Request for Quote

Part Number

Model number

Shaft code

Style

Taper

Value in Ohms

3RP/1422G

D1

Select Part Numbers from the table then click on the “Request a Quote” Button to send your requirements for Price and Delivery. If you need custom product please use the “Send your Specs” Button

Circuit

Electrical Characterisics

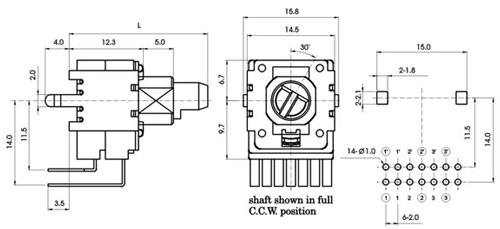

Mechanical Characteristics

Resistance Values

5 KOhm ~ 2 MOhm  +/- 20%

Total Rotational Angle

300 deg +/- 5 deg

Resistance Taper

A, B, C, MN

Rotational Torque

20 ~ 200 gf/cm

Residual Resistance

0.1% max of total resistance

Rotational Stop Strength

6 kgf/cm

Rated Power

0.05W

Push / Pull Strength

8 kgf/cm

Operating Voltage

50V AC / 20V DC

Shaft Lever Wobble

0.7xL/30mmp-p max

Insulation Resistance

100MOhm min @250V DC

LIfe

10,000 cycles

Gang Error

3dB max

Type Of Shaft

CODE

C

D

E

DIM “L”

25.0

30.0

35.0

DIM “F”

7.0

12.0

12.0
