12mm Rotary Pot 17 + Switch

Alpha Products Inc - 351 Irving Drive, Oxnard, CA 93030, USA - Tel: 805-981-8666 - Fax: 805-988-6555 - Contact Us

Send Your Specs

Other Catalogs

Contact Us

Std. Tapers

Request a Quote

Part Number

Model number

Bushing code

Switch

Shaft code

Style

Dim “H”

Taper

Value in Ohms

Detents

3RP/12B

S

A

Select Part Numbers from the table then click on the “Request a Quote” Button to send your requirements for Price and Delivery. If you need custom product please use the “Send your Specs” Button

Electrical Characterisics

Mechanical Characteristics

Resistance Values

5 KOhm ~ 500 KOhm  +/- 20%

Total Rotational Angle

Outer shaft = 120 deg
Inner shaft = 300 deg

Resistance Taper

A, B, C

Rotational Torque

30 ~ 250 gf/cm

Residual Resistance

0.1% max of total resistance

Rotational Stop Strength

Outer shaft = 4 kgf/cm
Inner shaft = 5 kgf/cm

Rated Power

0.05W

Push / Pull Strength

5 kgf/cm

Operating Voltage

taper A, C = 50V
taper B = 100V

Click Position

0 / Center

Insulation Resistance

100MOhm min @500V DC

Click Torque

60 ~ 450 gf/cm

Gang Error

3dB max

LIfe

10,000 cycles

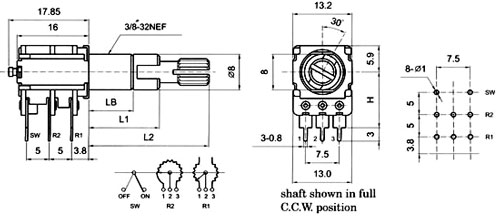

Type Of Bushing

CODE

A

B

C

D

E

DIM “L1”

21.0

26.0

32.0

36.0

41.0

DIM “LB”

15.0

20.0

26.0

30.0

35.0

Type Of Shaft

CODE

1

2

3

4

5

DIM “L2”

35.0

40.0

45.0

50.0

55.0

DIM “T”

7.0

8.0

9.0

10.0

11.0

DIM “F”

8.0

9.0

10.0

11.0

12.0

CODE

A

B

C

D

E

DIM “L2”

35.0

40.0

45.0

50.0

55.0

DIM “F”

7.0

8.0

9.0

10.0

11.0

CODE

Q

R

S

T

U

V

DIM “L2”

35.0

40.0

45.0

47.0

50.0

55.0

DIM “S”

7.0

8.0

9.0

8.0

10.0

11.0

Dimension “H”

CODE

1

2

DIM “H”

10.0

12.5

Detents

CODE

0

C

CLICKS

None

Center

Disclaimer: Alpha Products, Inc. makes no warranties, expressed or implied, including warranties of merchant ability or fitness /suitability for a particular purpose or application. Under no circumstances shall Alpha Products, Inc. be liable for incidental, consequential, or other damages from alleged negligence, breach of warranty, strict liability, tort, contract, or any other theory, arising out of the use, non use, or handling of these products. Alpha Products Inc. reserves the right to discontinue, modify, amend and / or change any product, specification or service at any time without any obligation of providing any notice.
