12mm Rotary Potentiometer 8

Alpha Products Inc - 351 Irving Drive, Oxnard, CA 93030, USA - Tel: 805-981-8666 - Fax: 805-988-6555 - Contact Us

Corporate Website

Send Your Specs

Other Catalogs

Contact Us

Std. Tapers

Request for Quote

Part Number

Model number

Shaft code

Style

Taper

Value in Ohms

3RP/12B1N

B1

Select Part Numbers from the table then click on the “Request a Quote” Button to send your requirements for Price and Delivery. If you need custom product please use the “Send your Specs” Button

Circuit

Electrical Characterisics

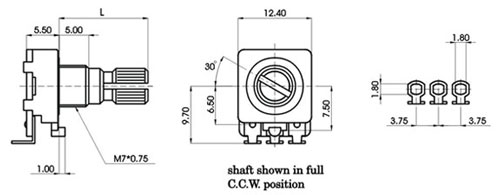

Mechanical Characteristics

Resistance Values

1 kOhm ~ 500 kOhm  +/- 20%

Total Rotational Angle

300 deg +/- 10 deg

Resistance Taper

B

Rotational Torque

20 ~ 255 gf/cm

Residual Resistance

0.1% max of total resistance

Rotational Stop Strength

5 kgf/cm

Rated Power

0.05W

Push / Pull Strength

8 kgf/cm

Operating Voltage

30V AC/DC

Click Position

Center

Insulation Resistance

100MOhm min @250V DC

Click Torque

51 ~ 204 gf/cm

LIfe

10,000 cycles

Type Of Shaft

CODE

A

B

C

DIM “L”

15.0

20.0

25.0

DIM “F”

7.0

12.0

12.0

CODE

2

3

4

DIM “L”

15.0

20.0

25.0

DIM “T”

6.0

10.0

12.0

DIM “M”

1.5

2.0

2.0
