Part Number
Model number
Shaft code
Style
Dim “H”
Taper
Value in Ohms
3RP/1116N
A
Select Part Numbers from the table then click on the “Request a Quote” Button to send your requirements for Price and Delivery. If you need custom product please use the “Send your Specs” Button
Circuit
Electrical Characterisics
Mechanical Characteristics
Resistance Values
5 KOhm ~ 2 MOhm +/- 20%
Total Rotational Angle
300 deg +/- 5 deg
Resistance Taper
A, B, C
Rotational Torque
20 ~ 200 gf/cm
Residual Resistance
0.1% max of total resistance
Rotational Stop Strength
5 kgf/cm
Rated Power
0.05W
Push / Pull Strength
8 kgf/cm
Operating Voltage
50V AC, 20V DC max
Shaft Lever Wobble
0.7 x L/30mmp-p max
Slide Noise
100mV max
LIfe
10,000 cycles
Insulation Resistance
100MOhm min @500V DC
Gang Error
3dB max

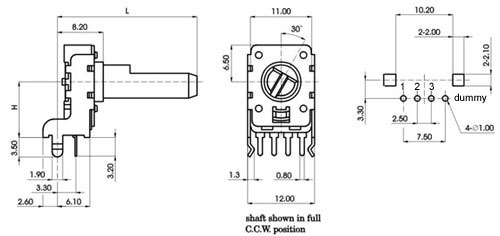

Dimension “H”
CODE
1
2
DIM “H”
10.0
12.5
Type Of Shaft
CODE
A
B
J
C
K
D
L
E
M
DIM “L”
15.0
20.0
22.5
25.0
27.5
30.0
32.5
35.0
37.5
DIM “F”
4.5
7.0
7.0
12.0
12.0
12.0
12.0
12.0
12.0
CODE
2
3
4
5
6
DIM “L”
15.0
20.0
25.0
30.0
35.0
DIM “T”
6.0
7.0
12.0
12.0
12.0
