10mm Rotary Potentiometer 1

Alpha Products Inc - 351 Irving Drive, Oxnard, CA 93030, USA - Tel: 805-981-8666 - Fax: 805-988-6555 - Contact Us

Corporate Website

Send Your Specs

Contact Us

Std. Tapers

Request for Quote

Part Number

Model number

Knob code

Style

Taper

Value in Ohms

3RP/1001N

D1

Select Part Numbers from the table then click on the Request a Quote Button to send your requirements for Price and Delivery. If you need custom product please use the Send your Specs Button

Circuit

Electrical Characterisics

Mechanical Characteristics

Resistance Values

5 KOhm ~ 250 kOhm  +/- 20%

Total Rotational Angle

270 deg +/- 5 deg

Resistance Taper

A, B, C

Rotational Torque

10 ~ 100 gf/cm

Residual Resistance

0.1% max of total resistance

Rotational Stop Strength

0.5 kgf/cm

Rated Power

taper A, C = 0.02W
taper B = 0.03W

Push / Pull Strength

1 kgf/cm

Operating Voltage

50V AC max

LIfe

10,000 cycles

Withstand Voltage

100V AC for 1 minute

Insulation Resistance

100MOhm min @100V DC

Gang Error

3dB max

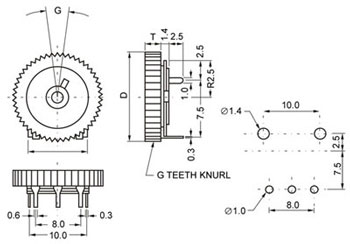

Knob option

CODE

1

2

3

4

5

6

8

9

10

DIM D

14.0

14.0

16.0

16.0

18.0

14.0

14.0

16.0

16.0

DIM T

0.8

1.0

2.0

3.0

1.0

0.8

1.0

2.0

3.0

DIM G

90 deg

90 deg

90 deg

60 deg

90 deg

90 deg

90 deg

90 deg

60 deg

COLOR

black

black

black

black

black

ivory

ivory

ivory

ivory
