Chip Trim Pot 3


	Alpha Products Inc - 351 Irving Drive, Oxnard, CA 93030, USA - Tel: 805-981-8666 - Fax: 805-988-6555 - Contact Us

Part Number

Model number

Style

Taper

Value in Ohms

3TP/1501N

A1


	Select Part Numbers from the table then click on the “Request a Quote” Button to send your requirements for Price and Delivery. If you need custom product please use the “Send your Specs” Button

Circuit

Electrical Characterisics

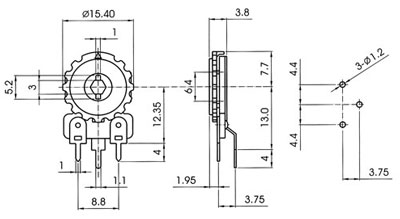

Mechanical Characteristics

Total Resistance

100 Ohm ~ 2MOhm +/- 20%

Total Rotational Angle

270 deg +/- 20 deg

Power Rating

0.1W

Rotational Torque

20 ~ 200 gf/cm

Operating Voltage

100V max

Rotational Stop Strength

7 kgf/cm

Resistance Taper

B

Life

10,000 cycles

Residual Resistance

0.1% max

Slide Noise

100mV max
