Select Part Numbers from the table then click on the “Request a Quote” Button to send your requirements for Price and Delivery. If you need custom product please use the “Send your Specs” Button
|
|
|
|
|
|
|
|

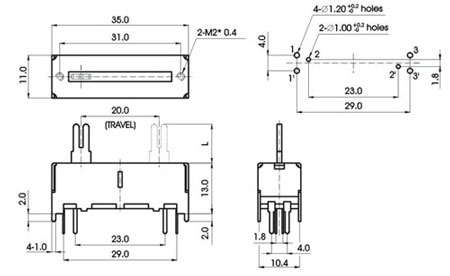

Circuit
|
|
|
|
Electrical Characterisics
|
Mechanical Characteristics
|
|
Resistance Values
|
1 KOhm ~ 1MOhm +/- 20%
|
Operating Force
|
20 ~ 200 gf
|
|
Resistance Taper
|
A, B, C, D, K, W, RD
|
Stop Strength
|
5 kgf
|
|
Residual Resistance
|
50 Ohm max
|
Lever Wobble
|
2(2xL)/20mm max
|
|
Rated Power
|
taper except B = 0.025W
taper B = 0.05W
|
Bending Moment
|
250 gf/cm
|
|
Operating Voltage
|
taper except B = 50V AC
taper B = 100V AC
|
Lever Deviation
|
0.5 max (one side)
|
|
Insulation Resistance
|
100MOhm min @250V DC
|
Clicks
|
Center, 7
|
|
Gang Error
|
3 dB max
|
Life
|
15,000 cycles
|
|
|
|
|
|
Type Of Lever
|
|
|
|
CODE
|
1
|
2
|
3
|
4
|
5
|
|
DIM “L”
|
10.0
|
12.0
|
15.0
|
20.0
|
25.0
|
|
DIM “F”
|
7.0
|
10.0
|
10.0
|
10.0
|
10.0
|
|
DIM “M”
|
7.0
|
7.0
|
7.0
|
7.0
|
7.0
|
|
|
|
|
|
CODE
|
B
|
C
|
|
DIM “L”
|
15.0
|
20.0
|
|
DIM “F”
|
10.0
|
10.0
|
|
|
|
|
|
|
|
|
Clicks
|
|
CODE
|
# OF CLICKS
|
|
C
|
CENTER
|
|
7
|
7
|
|
|
|
|
|
