9.5mm Slide Pot 3


	Alpha Products Inc - 351 Irving Drive, Oxnard, CA 93030, USA - Tel: 805-981-8666 - Fax: 805-988-6555 - Contact Us

Part Number

Model number

Lever

Style

Taper

Value in Ohms

3SP/C 33S


	Select Part Numbers from the table then click on the “Request a Quote” Button to send your requirements for Price and Delivery. If you need custom product please use the “Send your Specs” Button

Circuit

Electrical Characterisics

Mechanical Characteristics

Resistance Values

5 KOhm ~ 2MOhm +/- 20%

Operating Force

20 ~ 200 gf

Resistance Taper

A, B, C, D, K, W

Stop Strength

5 kgf

Residual Resistance

50 Ohm max

Lever Wobble

2(2xL)/20mm max

Rated Power

0.25W max

Bending Moment

250 gf/cm

Operating Voltage

200V AC max

Push / Pull Strength

3 kgf

Insulation Resistance

100MOhm min @250V DC

Lever Deviation

0.5 max (one side)

Withstanding Voltage

300V AC for 1 minute

Life

15,000 cycles

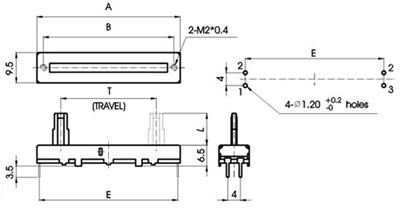

Dimensions
TRAVEL CODE	DIM “T”	DIM “A”	DIM “B”	DIM “C”	DIM “D”	DIM “E”	DIM “F”
15	15.0	30.0	26.0	-	-	28.5	18.0
20	20.0	35.0	31.0	6.2	9.8	33.5	23.0
30	30.0	45.0	41.0	16.2	19.8	43.5	33.0
45	45.0	60.0	56.0	-	-	58.5	48.0

Type Of Lever

CODE

7

1

2

3

5

6

DIM “L”

5.0

10.0

12.5

15.0

18.0

20.0

DIM “F”

5.0

5.0

5.0

5.0

5.0

5.0

CODE

8

9

DIM “L”

5.0

10.0
