8mm Slide Pot 6


	Alpha Products Inc - 351 Irving Drive, Oxnard, CA 93030, USA - Tel: 805-981-8666 - Fax: 805-988-6555 - Contact Us

Part Number

Model number

Lever

Style

Taper

Value in Ohms

3SP/C 42N


	Select Part Numbers from the table then click on the “Request a Quote” Button to send your requirements for Price and Delivery. If you need custom product please use the “Send your Specs” Button

Circuit

Electrical Characterisics

Mechanical Characteristics

Resistance Values

5 KOhm ~ 2MOhm +/- 20%

Operating Force

20 ~ 200 gf

Resistance Taper

A, B, C, D, K, W, RD

Stop Strength

5 kgf

Residual Resistance

50 Ohm max

Lever Wobble

2(2xL)/20mm max

Rated Power

0.2W max

Bending Moment

250 gf/cm

Operating Voltage

taper except B = 150V AC

taper B = 200V AC

Push / Pull Strength

3 kgf

Insulation Resistance

100MOhm min @250V DC

Lever Deviation

0.5 max (one side)

Life

15,000 cycles

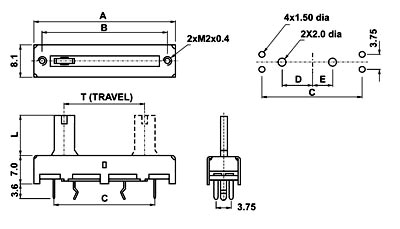

Dimensions
TRAVEL CODE	DIM “T”	DIM “A”	DIM “B”	DIM “C”	DIM “D”	DIM “E”	DIM “F”	DIM “G”
20	20.0	35.0	31.0	25.0	7.5	5.0	-	-
30	30.0	45.0	41.0	35.0	12.5	10.0	-	-
45	45.0	60.0	56.0	50.0	17.5	15.0	-	-
60	60.0	75.0	71.0	65.0	-	-	25.0	22.5

Type Of Lever

CODE

1

3

DIM “L”

10.0

15.0

CODE

5

4

6

DIM “L”

5.0

10.0

15.0

CODE

7

8

9

DIM “L”

10.0

15.0

20.0
