16mm Slide Pot 15


	Alpha Products Inc - 351 Irving Drive, Oxnard, CA 93030, USA - Tel: 805-981-8666 - Fax: 805-988-6555 - Contact Us

Part Number

Model number

Lever

Terminal

Taper

Value in Ohms

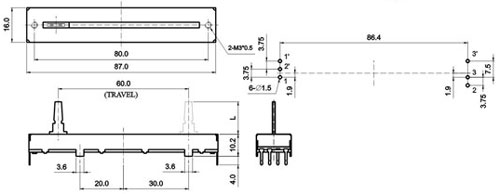

3SP/S6082G


	Select Part Numbers from the table then click on the “Request a Quote” Button to send your requirements for Price and Delivery. If you need custom product please use the “Send your Specs” Button

Circuit

Electrical Characterisics

Mechanical Characteristics

Resistance Values

1 KOhm ~ 1MOhm +/- 20%

Operating Force

10 ~ 260 gf

Resistance Taper

A, B, C

Stop Strength

10 kgf

Residual Resistance

0.1% of total resistance max

Push / Pull Strength

5 kgf

Rated Power

0.1W max

Lever Deviation

0.5 max (one side)

Operating Voltage

100V AC max

Lever Wobble

2(2xL)/25mm max

Insulation Resistance

100MOhm min @250V DC

Bending Moment

250 gf/cm

Slide Noise

100mV max

Life

15,000 cycles

Type Of Lever

CODE

1

4

DIM “L”

10.0

20.0

CODE

X

Y

DIM “L”

15.0

20.0

CODE

R

DIM “L”

8.0

CODE

L

M

N

O

J

DIM “L”

8.0

10.0

12.0

20.0

15.0

DIM “A”

1.5

1.5

1.5

1.5

0

Type Of Terminal

CODE

A1

DIM “H”

4.0

CODE

B1

DIM “H”

4.0
