8mm Encoder 2

Alpha Products Inc - 351 Irving Drive, Oxnard, CA 93030, USA - Tel: 805-981-8666 - Fax: 805-988-6555 - Contact Us

Corporate Website

Send Your Specs

Contact Us

Std. Tapers

Request for Quote

Part Number

Model number

Bushing

Shaft

Style

Clicks

3EN/84

E

A1

16

Select Part Numbers from the table then click on the “Request a Quote” Button to send your requirements for Price and Delivery. If you need custom product please use the “Send your Specs” Button

Electrical Characterisics

Mechanical Characteristics

Rated Power

0.05W

Total Rotational Angle

300 deg

Operating Voltage

50V AC max

Push / pull Strength

5 kgf / 3 kgf

Insulation Resistance

100MOhm min @250V DC

Click Position

16

Withstanding Voltage

300V AC for 1 minute

Click Torque

20 ~ 150 gf/cm

Life

30,000 cycles

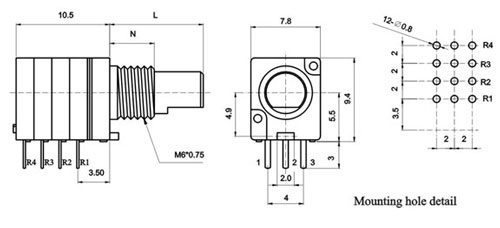

Type Of Shaft

BUSHING 5mm

CODE

H

A

G

B

C

DIM “L”

12.0

15.0

18.0

20.0

25.0

DIM “F”

5.0

7.0

9.0

12.0

12.0

BUSHING 10mm

CODE

G

B

C

DIM “L”

18.0

20.0

25.0

DIM “F”

6.0

7.0

12.0

Length of bushing

CODE

5

0

DIM “N”

5

10
